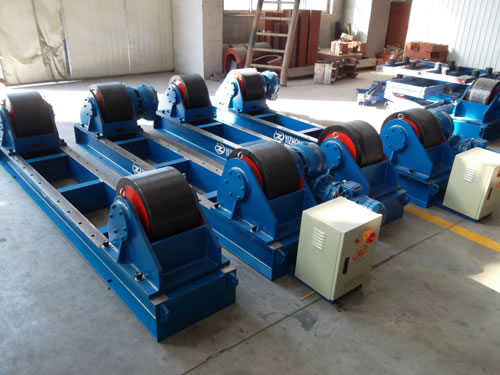

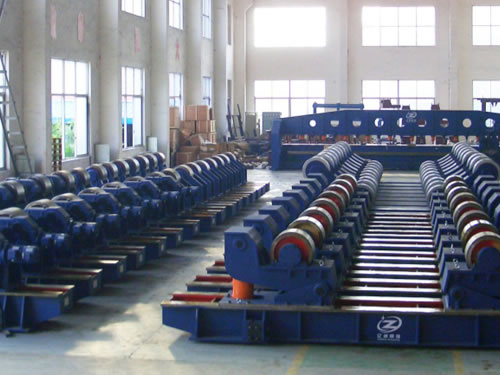

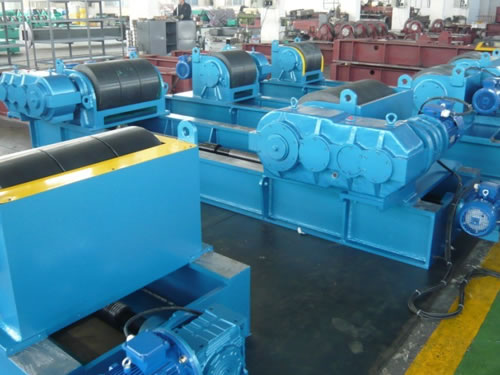

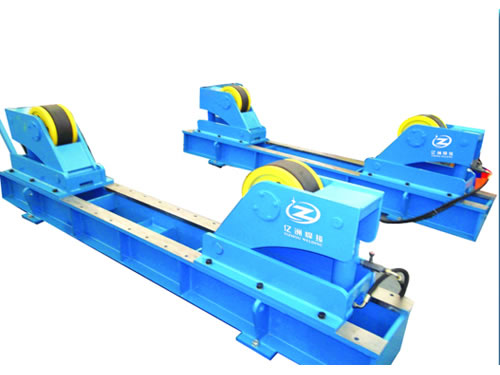

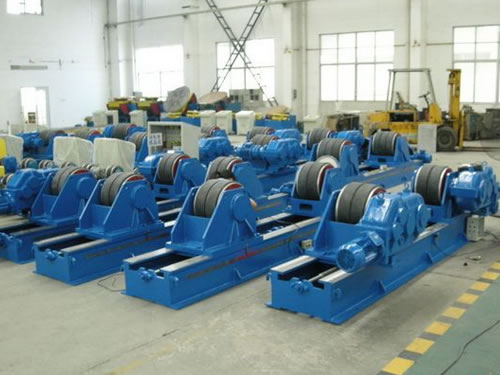

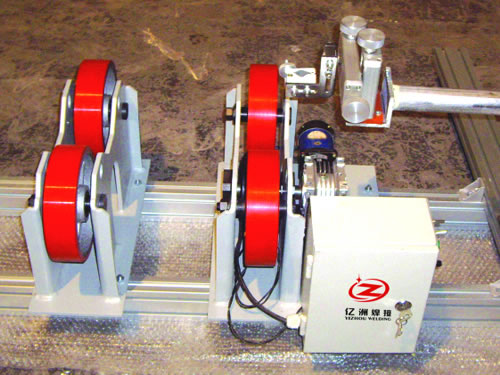

Adjustable Welding Rotator

Introduction
Our adjustable welding rotator is applicable in welding, polishing, rubber lining and assembling of cylinders. This welding turning roller adopts manual adjustment of centre distance. The roller liner speed is 6 to 60 m per hour. The load capacity ranges from 3 ton to 650 ton.

Features

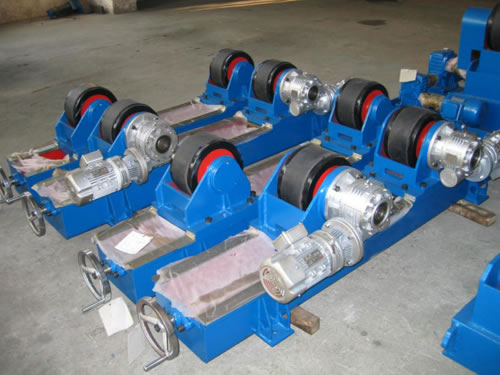

1. The adjustable welding rotator is designed with a screw adjusting method. And for workpiece with large ton, the screw hole can adjust the centre distance of roller to meet workpiece of different diameters.
2. It is of stepless speed regulation, thus is easy and safe to operate.
3. The welding turning roller is designed with an excellent deceleration transmission device.

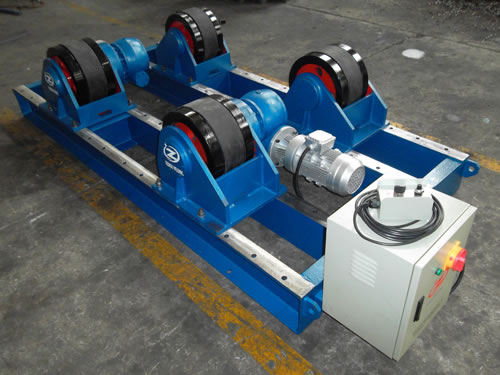

4. The adjustable welding rotator can be operated with a manual control box.
5. AC variable frequency speed control improves the reliability of operation.
6. Depending on actual needs, customized rollers can be provided.

Technical Parameters

Specification	Max. Load Capacity (T)	Diameter of Cylinder (mm)	Roller Size (D*W)		Liner Speed (m/h)	Power (Kw)	Mode of Speed Adjustment
Specification	Max. Load Capacity (T)	Diameter of Cylinder (mm)	Rubber	Metal	Liner Speed (m/h)	Power (Kw)	Mode of Speed Adjustment
YZK-3	3	250-1800	200 × 100	2 × 194 × 20	6-60	2 × 0.25	AC Variable Frequency Stepless Regulation or Electromagnetic Regulation
YZK-5	5	250-2300	250 × 100	2 × 240 × 20	6-60	2 × 0.37
YZK-10	10	320-2800	300 × 120	2 × 290 × 25	6-60	2 × 0.55
YZK-20	20	500-3500	350 × 120	2 × 340 × 30	6-60	2 × 1.1
YZK-30	30	600-4000	350 × 120	2 × 340 × 30	6-60	2 × 1.1
YZK-40	40	600-4200	400 × 120	2 × 390× 40	6-60	2 × 1.5
YZK-50	50	750-4500	400 × 120	2 × 390 × 40	6-60	2 × 2.2
YZK-60	60	750-4800	450 × 120	2 × 440 × 50	6-60	2 × 2.2
YZK-80	80	850-5000	500 × 120	2 × 490 × 60	6-60	2 × 3
YZK-100	100	1000-5500	500 × 120	2 × 490 × 70	6-60	2 × 3
YZK-160	160	1100-6000	/	620 × 220	6-60	2 × 4
YZK-250	250	1200-7000	/	700 × 280	6-60	2 × 5.5
YZK-400	400	1300-7500	/	850 × 350	6-60	2 × 7.5
YZK-630	650	1400-8500	/	900 × 400	6-60	2 × 11

We are a professional welding turning roller supplier in China. Besides adjustable welding rotator, we mainly offer CNC cutting machine, H beam production line, straightening machine, welding machine, welding turning roll, milling machine, flux recovery machine, welding manipulator, welding positioner, and so on. We provide a series of customer services, including technical consultation, training, installation, debugging, and so forth. To know more about adjustable welding rotator, please visit our website or call us.
