CNC Cutting Machines

• CNC Plasma Cutting Machine
•
• The CNC plasma cutting machine manufactured by us is broadly used in such industries as chemical, automobile, general engineering machinery, etc. This CNC plasma cutter can be furnished with plasma power supply of HYPERTHERM, THERMADYNE and KJELLBERG ...

• CNC Oxy-Fuel Flame Cutting Machine
•
• Our CNC oxy-fuel cutting machine works to cut metal materials with fuel gas or gasoline plus oxygen. Its minimum cutting width is 230 mm. The plate thickness ranges from 6 mm to 100mm. The cutting speed of our gas cutting machine is 0.05 to 6m per minute and the max ...

CNC Cutting Machines

• Multi-Head Strip Cutting Machine
•
• Multi-head strip cutting machine is a high efficient gas flame cutting equipment that uses oxygen and acetylene as cutting fuel. It is installed with one set of flame cutting torches on the front, which is used for horizontal or diagonal cutting. On the back side, it has two sets of flame cutting torques ...

• H Beam Assembling Machine
•
• H beam assembly machine is generally applied in the spot welding and assembling of the cut plates. The flange and web plate of main frame respectively has two sets of centring clamping devices which are driven by hydraulic cylinder. The hydraulic cylinder drives rack to move gear which drives ...

• H-Beam Automatic Welding Machine
•
• Considering the particularity of fillet welding in the flat position, H-beam automatic welding machine is designed and manufactured. Gantry welding machine is structured by a gantry, sliding plate, torch mechanical tracking system, flux recycling system, submerged arc welder ...

• H-Beam Straightening Machine
•
• H beam flange straightening machine is exclusively used to straighten out H beam deformed flange plate after the welding. Our plate leveling machine is characteristic of simple structure, easy operation, high efficiency and reliable work. The straightening speed is 5.7 m/min ...

• Automatic H Beam Production Line
•
• Automatic H beam production line is able to complete the operations of work piece cutting, assembling, welding, straightening and burnishing. It is mainly made up of CNC cutting machine, automatic H beam assembly machine, gantry automatic welder or cantilever ...

• Overturning and Conveying Equipment
•
• To reduce the operating frequency and improve efficiency, we configure H beam production line with hydraulic overturning machine, H beam conveying machine and turnover bracket. These help to achieve automatic transference and turnover during the process of welding and straightening ...

H Beam Welding Machine

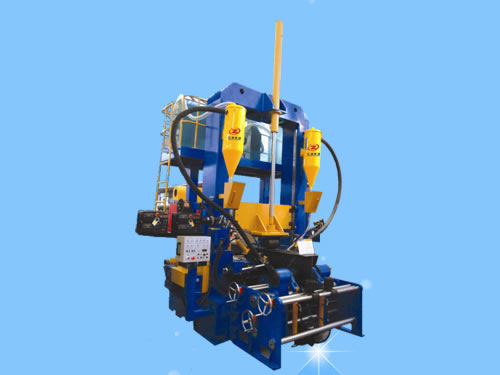

• H Beam Welding Machine
•
• H beam assembly welding straightening machine is efficient equipment which allows H beam assemblage, submerged arc welding and flange plate deformation straightening to be conducted simultaneously. Beyond that, such H beam welding machine takes up less space ...

• Box Beam Production Line
•
• Box-beam production line can complete the operations of loading material, cutting, assembling, backing welding, electroslag welding and edge milling. This box beam welding line has advantages of low investment, small occupation area, high automation and high efficiency...

Welding Rotator

• Self-Aligning Welding Rotator
•
• This series of self-aligning welding rotator is suitable for automatic welding of circumferential and longitudinal seam of metal cylinder when matched with YZH welding machine. On the other hand, this welding turning roll can also provide help to manual welding. Besides, it helps to test ...

• Adjustable Welding Rotator
•
• Our adjustable welding rotator is applicable in welding, polishing, rubber lining and assembling of cylinders. This welding turning roller adopts manual adjustment of centre distance. The roller liner speed is 6 to 60 m per hour. The load capacity ranges from 3 ton to 650 ton ...

• Fit-up Welding Rotator
•
• The fit-up welding rotator is mainly employed to weld long pipes, such as wind tower. Such welding turning roller uses four independent rollers for assemblage. It is usually used with passive roller. The maximum load capacity varies from model to model (3t to 650t). It adopts AC variable ...

• Anti-Drift Welding Rotator
•
• The anti-drift welding rotator is used for welding thick-wall and narrow gap cylinders. It works to prevent the workpiece form drifting axially. The anti-drifting accuracy is less then ±1.5-2 mm. We provide three types of welding turning roll for selection-single jack-up ...

Welding Positioners

• Standard Welding Positioner
•
• Standard welding positioner is able to meet the requirements of all kinds of work-pieces. It is made up of worktable rotation mechanism, overturning mechanism and electronic control system. The work-piece can be welded or assembled through the overturning and rotating of the worktable ...

• Hydraulic Elevating Welding Positioner
•
• Hydraulic elevating welding positoner can adjust worktable height through changing plug position. With good dynamic brake, it can stop immediately. This hydraulic welding positioner is armed with anti-interference electronic control system to achieve remote control...

• Welding Turntable
•
• The horizontal welding turntable is mainly used for the welding, surfacing or cutting of pipes and flange plates. Such rotary welding positioner is also suitable for assembling, cutting, inspecting, sanding and painting work piece. It enables work-piece to rotate around vertical axis...

• Custom Welding Positioner
•
• The welder positioner includes the tilting type, lifting type, head and tail stock positioner, welding turntable and double rotation type. The work-piece is made to be in the optimum position for welding or assembling by way of the lifting and rotation of worktable. The positioner...

Automatic Welding Manipulators

• Light Duty Welding Manipulator
•
• Our light duty welding manipulator is used for plate weld and butt weld. Besides, it is also suitable for longitudinal weld of cylinders. If equipped with turning rolls, the column and boom welding manipulators are available for all-round weld of cylinders. Furnished with positioner...

• Heavy Duty Welding Manipulator
•
• The heavy duty welding manipulator is designed for operations requiring extended lift and reach. The effective lift stroke is 8000mm, 5000mm and 4000mm for different models. When armed with positioner, our automatic welding manipulators are suitable for all-round weld ...

• Welding Platform
•
• Our welding platform is usually used for inside weld and outside weld. When the welding trolley moves along the cantilever, this kind of welding equipment can also conduct the internal and external longitudinal welding of large diameter short cylinders. Always used with welding...

Milling Equipment

• Face Milling Machine
•
• The face milling machine manufactured by us can be used for milling both H beam and box beam surface and sides. The maximum end face size that can be processed is 1200mm*1500mm and the minimum size is 300mm*200mm. The horizontal ...

• Plate Edge Milling Machine
•
• Plate edge milling machine is a kind of high efficiency equipment to process plate end bevels by way of milling instead of beveling. This milling equipment is necessary for automatic welding in pressure container, shipbuilding, electricity, chemical and structural steel industry...

• Chamfering Machine
•
• Our chamfering machine cuts plate edges according to the required angles to obtain desired end bevel for welding. It works based on the principle of rolling shear. Such beveling machine is mainly used for the chamfering of mechanical units and metal plates in steel processing...

Shot Blasting Machines

• H Beam Shot Blasting Machine
•
• H beam shot blasting machines are utilized to smoothen the surface of steel castings and to remove contaminants like dust, oxides, etc. Equipped with advanced efficient single-disk abrasive impellers, H beam shot blaster can propel high-speed and dense shots...

• Steel Plate Shot Blasting Machine
•
• JPG steel plate shot blasting machines are specially designed for pre-treatment of steel plates and structural components, also for post-treatment of steel structural members. These small shot blasting machines are featured by high efficiency, high quality...

• Steel Plate Pretreatment Line
•
• Steel plate pretreatment lines are used to derust steel castings and apply protective primers onto the surface before these steel castings accept welding treatment. Pre-treated by steel plate sandblasting devices, steel surface is evenly roughened with dense pits ...

• Sandblasting Room and Sandblasting Equipment
•
• 1. Sandblasting room is specially designed for derusting various steel castings, including large-size castings and forgings, welded structural steels, transformer tanks, machines, vehicles, ships, etc.
  2. In abrasive blast room, steel castings ...

Flux Recovery Equipment

• Automatic Flux Recovery Equipment
•
• YS-H automatic flux recovery equipment is widely used to recycle submerged arc solders. They are widely used in welding industry. There are five types of YS-H solder recycling machines: YS-H-C, YS-H-A, YS-H-M, YS-H-B and YS-H30M machines ...

• Suspended Flux Recovery Unit
•
• YS-GHS suspended flux recovery unit is one of the most mature products manufactured by us since 2006. It applies durable suspended automatic valve whose seal ring is convenient to change. Even if this valve is stocked, it will not be damaged. As professional Chinese solder recycling ...

• Split Flux Recovery System
•
• YS-FHS split flux recovery systems are designed on the basis of special welding equipments and welding technology. This flux recovery conveyor system is constituted by dedusting recycling system and conveying system. It is placed in welding platform and connected ...

• Submerged Arc Flux Recovery Unit
•
• YS-ZHS submerged arc flux recovery units can use compressed air as power to recovery soldering flux. Flux tanks of YS-ZHS positive pressure flux recovery machines can contain 75 L soldering flux. Hoppers are automatically supplied with solders when flux level ...

• Welding Fume Extractor
•
• YS-CC(Y) impulse welding fume extractors are used to collect fume in welding and cutting treatments and collect dusts in milling and polishing treatments. They are environment-friendly, meeting demands of improving working conditions. HONJ is a professional ...

• Solder Separation Machine
•
• YS-DZFC solder dross separator machines are used to filtrate the surplus soldering flux in submerged arc welding. With these flux magnetic separators, metallic powders and flux can be separated. YS-DZFC flux filtrating machines are with high performance cost ratio, because they combine ...

• Automatic Welding Rod Oven
•
• Three latest welding rod ovens are provided by us: YS-RA, YS-RB and YS-RAB automatic electrode drying ovens. Combine functions of electrode drying and soldering flux drying together, they present competitive advantages. Besides, electrode drying and soldering ...
