Anti-Drift Welding Rotator

Anti-Drift Welding Rotator

Introduction

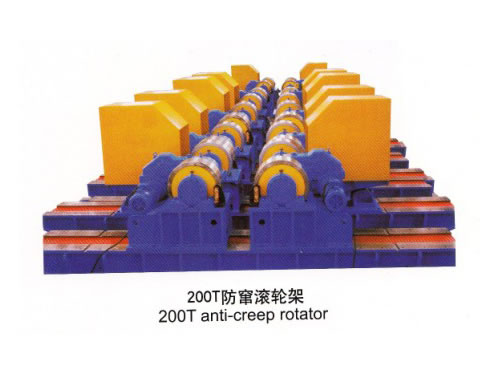

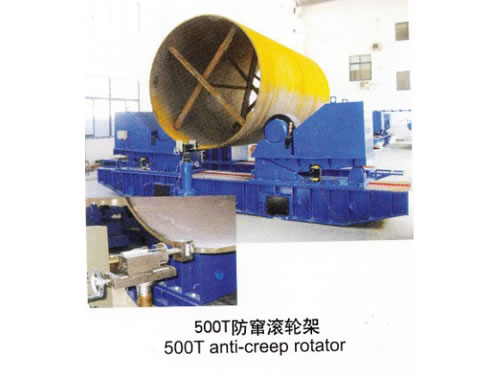

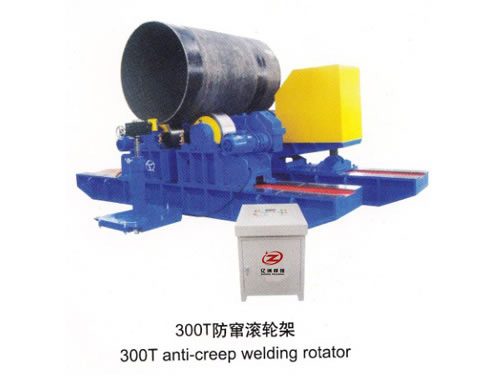

The anti-drift welding rotator is used for welding thick-wall and narrow gap cylinders. It works to prevent the workpiece form drifting axially. The anti-drifting accuracy is less than ±1.5-2 mm. We provide three types of welding turning roll for selection-single jack-up, double jack-up and roller deflection anti-drifting. Its max load capacity is 1600t (YZFK-1600) and the liner speed is 6 to 60 meters an hour.

Features
1. Adopting imported variable frequency drive (VFD), this anti-drift welding rotator has advantages of stepless speed regulation, wide regulating range, high regulation precision and stable output torque.
2. Anti-drift welding rotator is furnished with an electronic control system, control cabinet and remote control box.
3. The linkage interface on the control box makes achieved synchronized linkage with welding manipulator.
4. The welding turning roll can realize adjustment of plate in height and length.

Parameters of Anti-Drift Welding Rotator

Model Max. Load Capacity (T) Diameter of Cylinder (mm) Roller Size (D*W (mm) Liner Speed (m/h) Power (Kw) Mode of Speed Adjustment
Rubber Metal
YZFK-40 40 600-4200 400 × 120 394 × 60 6-60 1.1 × 2 AC Variable Frequency Stepless Regulation or Electromagnetic Regulation VFD
YZFK-60 60 750-5000 450 × 120 444 × 70 1.5 × 2
YZFK-100 100 800-6000 450 × 120 538 × 100 2.2 × 2
YZFK-160 160 1000-6000 550 × 120 620 × 220 3 × 2
YZFK-250 250 1000-7000   700 × 260 4 × 2
YZFK-400 400 1000-7500 / 800 × 300 5.5 × 2
YZFK-500 500 1000-8000 / 800 × 300 7.5 × 2
YZFK-630 630 1000-8500 / 850 × 350 11 × 2
YZFK-800 800 1500-9000 / 900 × 350 15 × 2
YZFK-1000 1000 1500-10000   950 × 350 15 × 2
YZFK-1250 1250 2000-15000   1100 × 400 22 × 2
YZFK-1600 1600 2000-15000   1200 × 400 30 × 2

Wuxi ABK Machinery Co.Ltd. is a professional supplier of welding turning roll, CNC cutting machine, welding manipulator, welding positioner, H –beam production line, box beam production line, milling equipment, shot blasting machine, etc. Our products including anti-drift welding rotator are widely employed in heavy machinery, ship, pressure vessel, structural steel, petrochemical engineering and other industries. They sell well not only in China but also across the world, like the USA, Russia, Australia, Japan, India, Malaysia, Iran, Brazil, and so on.
