H Beam Shot Blasting Machine

H Beam Shot Blasting Machine

Introduction

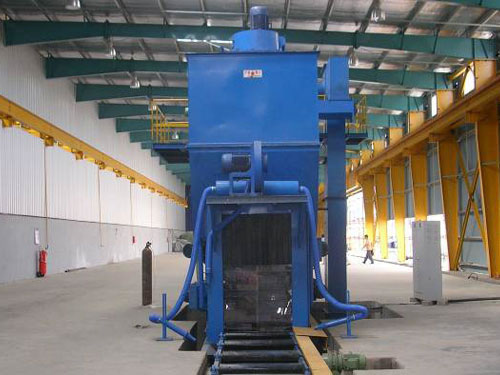

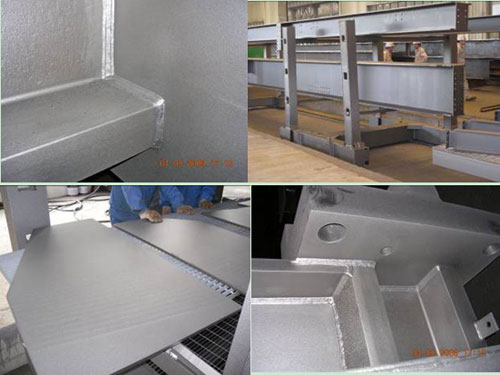

H beam shot blasting machines are utilized to smoothen the surface of steel castings and to remove contaminants like dust, oxides, etc. Equipped with advanced efficient single-disk abrasive impellers, H beam shot blaster can propel high-speed and dense shots to conduct three-dimensional surface treatment for steels. Then, steel castings are endowed with clean and smooth surface. Besides, steels treated by steel shot blasting machines are more wear-resistant, erosion-resistant, durable and with larger adhesive force.

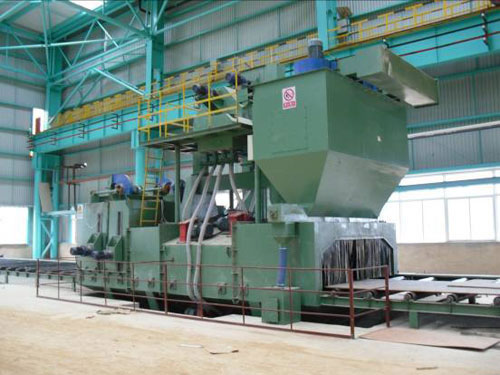

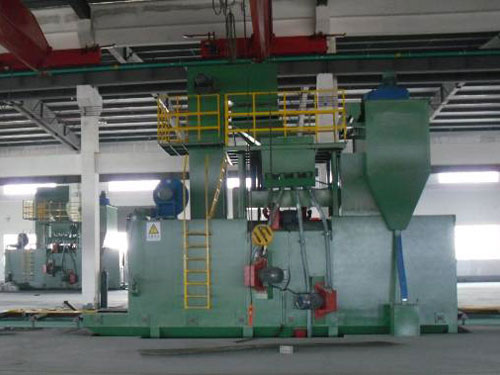

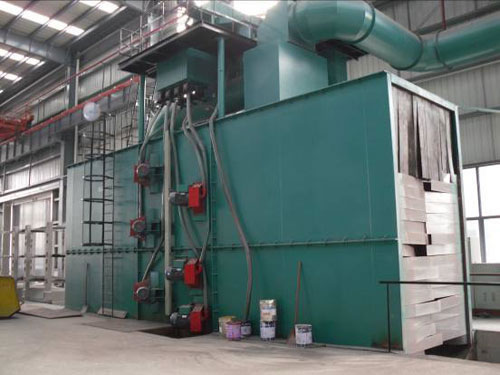

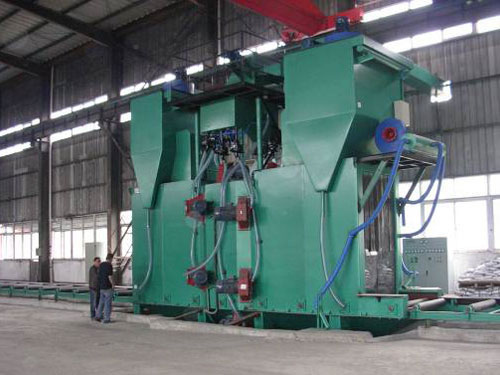

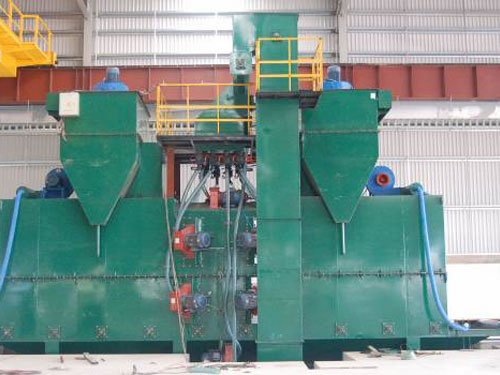

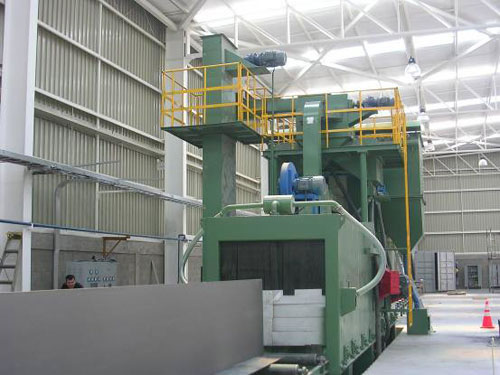

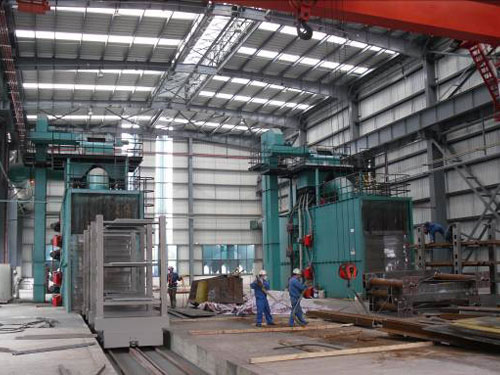

Categories of H Beam Shot Blaster
HPG series of H beam shot blasting machines can be divided into light-duty ones and heavy-duty ones. The light-duty H-shaped steel abrasive blasting equipments are used for surface treatment of small sized steel castings. While the heavy-duty ones are for treating surface of large-size welded structural components, H-shaped beams, steel racks, steel plates, etc.

Parameters of H Beam Shot Blasting Machine

Model No. HPG126 HPG1810 HPG2012 HPG2512 HPG2515 HPG3020 HPC3020 HPC4025
1 Cleaning Height mm 1200 1800 2000 2500 2500 3000 3500 4000
2 Cleaning Width mm 600 1000 1200 1200 1500 2000 2500 2500
3 Feed Inlet Size mm 1230 × 800 1830 × 1200 2030 × 1400 2530 × 1400 2530 × 1700 3030 × 2200 3530 × 2700 4030 × 2700
4 Length of Steel Castings mm 3000-15000 3000-15000 3000-15000 3000-18000 3000-18000 3000-18000 3000-18000 3000-18000
5 Thickness of Steel Plates mm 5-60 5-60 5-60 5-80 5-100 5-120 5-120 6-120
6 Size of Steel Castings   1200 × 600 1800 × 1000 2000 × 1200 2500 × 1200 2500 × 1500 3000 × 2000 3500 × 2500 4000 × 2500
7 Speed of Roller Way (Step-Less) m/min 0.5-6 0.5-6 0.5-5.5 0.5-5.5 0.4-4 0.5-5.5 0.5-5.5 0.5-5.5
8 Shot Quality kg/min 6 × 220 8 × 220 8 × 220 12 × 220 12 × 220 14 × 220 12 × 250 16 × 250
9 Initial Loading Quantity kg 3000 5000 5000 6500 7000 8000 7000 9000
10 Air Rate m3/h 7500 11700 15000 22000 25000 33000 33000 45000
11 Depth below Ground mm 2030 2030 2260 2260 2260 2930 1885 2116
12 Machine Dimension mm 26180 × 3700 × 7800 30360 × 3700 × 8400 30740 × 4600 × 8900 37820 × 4600 × 9500 40820 × 5000 × 9600 40978 × 5500 × 11090 42000 × 5500 × 11441 43500 × 6000 × 12380
13 Total Power kw 108.4 130.4 140.9 201 208.5 253 204.5 307.5
