Light Duty Welding Manipulator

Light Duty Welding Manipulator

Introduction

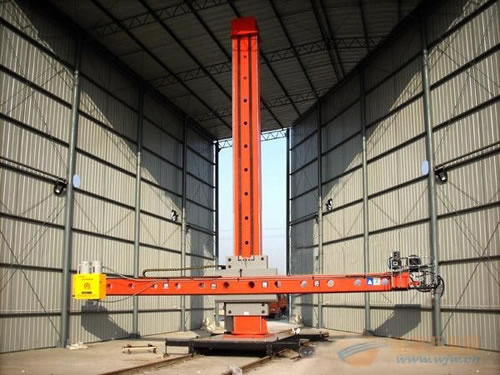

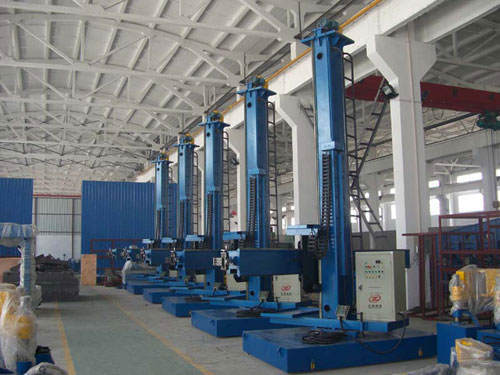

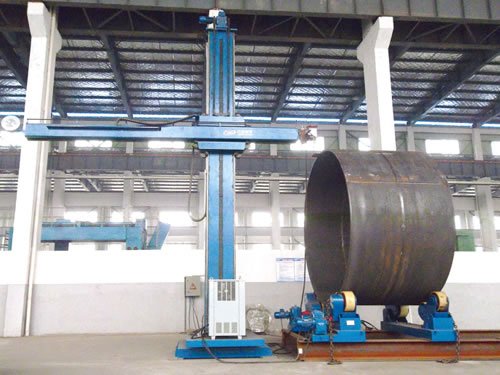

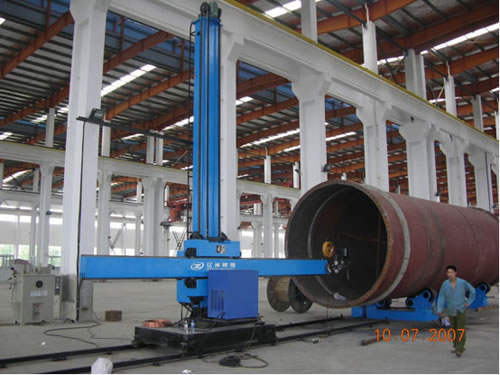

Our light duty welding manipulator is used for plate weld and butt weld. Besides, it is also suitable for longitudinal weld of cylinders. If equipped with turning rolls, the column and boom welding manipulators are available for all-round weld of cylinders. Furnished with positioner, the manipulator can weld different parts and various work-pieces as well.

Features
1. Light duty welding manipulator employs automatic tracking and monitoring device.
2. The beam lifting adopts constant speed which ensures stable and reliable elevation.
3. Remote control can be achieved with using the manual control box.
4. The retraction of cross arm utilizes frequency conversion control or PLC.
5. Our light duty welding manipulator enjoys high precision and accurate positioning.
5. According to clients’ requirements, we provide custom column and boom welding manipulators.

Parameters

Model of Light Duty Welding Manipulator Medium Light Precise
3.5 * 5 3 * 4 2 * 2 3 *4
Effective Lifting Stroke (mm) 3500 3000 2000 3000
Effective Retraction Stroke (mm) 5000 4000 2000 4000
Dia. of Cylinder (mm) 700-500 700-3000 500-2000 700-3000
Rotating Angle of Engine Base ±180° ±180° ±180° (Manually) ±180°
Lifting Speed (m/min) 1 1 0.3 1
Retraction Speed (m/min) 0.12-1.2 0.12-1.2 0.12-1.2 0.12-1.2
Trolley Moving Speed (m/min) 3 3 1.5 3
Centre Distance of Trolley Guide Rail (mm) 1780 1500 900 1500

Founded in 2009, WUXI HONJ MATERIAL CO., LTD. mainly specializes in making automatic welding equipment. Besides, we also produce box beam production line, H beam production line, light duty welding manipulator, welding positioner, shot blasting machine, etc. Some products have reached foreign standard. All products sell well among China and around the world, such as the USA, Canada, Russia, Italy, Australia, Japan, India, and so on. For more information about column and boom welding manipulators, do not hesitate to visit our website or contact us directly.
