Heavy Duty Welding Manipulator

Heavy Duty Welding Manipulator

Introduction

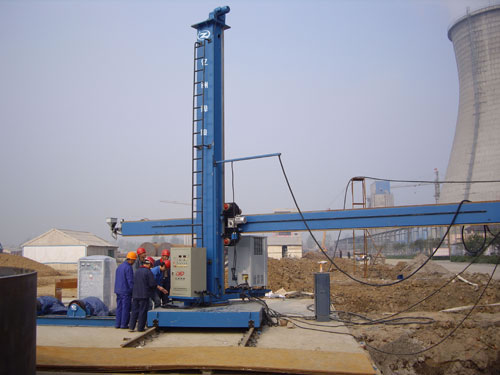

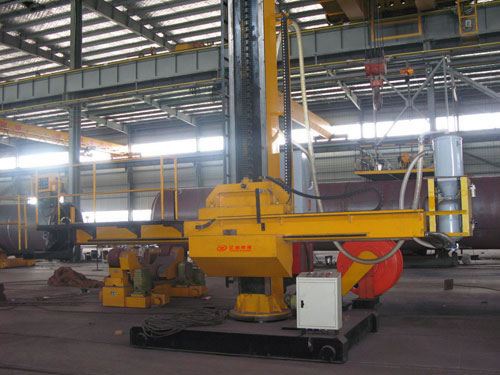

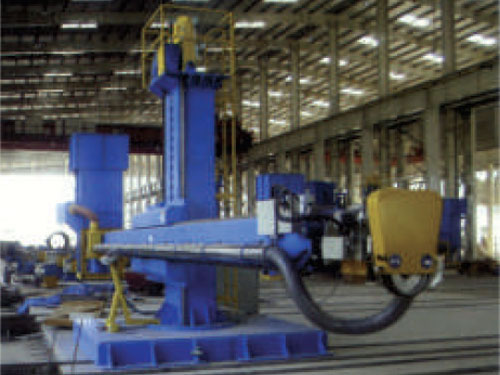

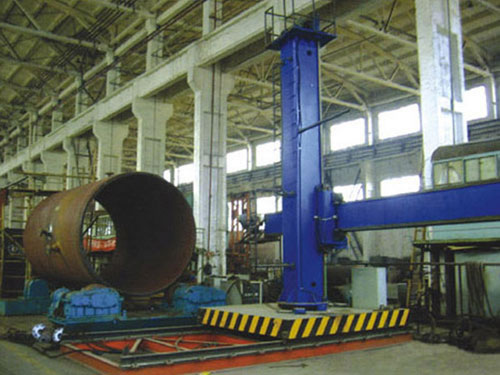

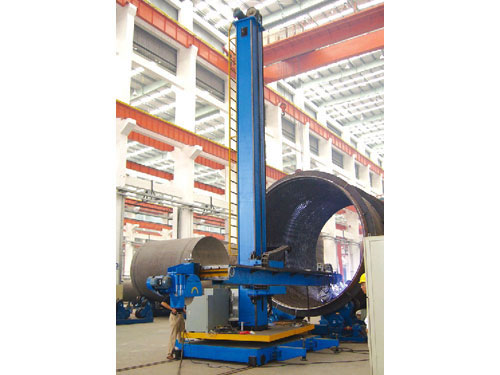

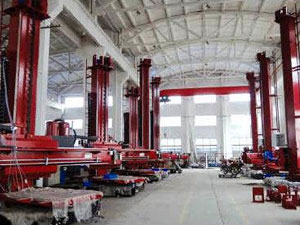

The heavy duty welding manipulator is designed for operations requiring extended lift and reach. The effective lift stroke is 8000mm, 5000mm and 4000mm for different models. When armed with positioner, our automatic welding manipulators are suitable for all-round weld of internal and external cylinders. The acceptable diameter of cylinder is 1000 mm to 8000 mm, 1000 mm to 5000 mm and 1000 mm to 4000 mm for different models. In addition, the heavy duty welding manipulator made by us is adapted for plate weld, butt weld and longitudinal weld, too.

Features

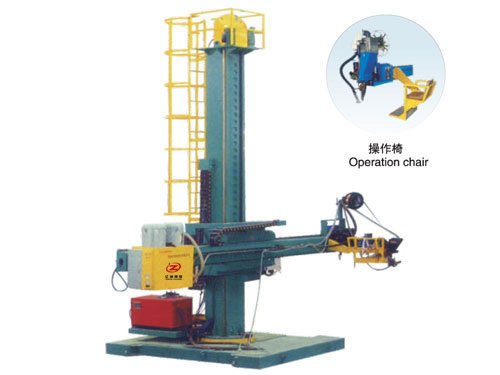

1. The operation platform enables adjustment convenient.
2. Heavy duty welding manipulator is installed with an automatic tracking and monitoring device.
3. Stable and safe elevation can be realized with the employment of constant speed lifting.
4. The manual control box makes remote control possible.
5. The cross arm of automatic welding manipulator uses frequency conversion control or PLC.

Parameters

Specification Heavy Duty Welding Manipulator
8 *6 5 * 6 4 * 5
Effective Lifting Stroke (mm) 8000 5000 4000
Effective Retraction Stroke (mm) 6000 6000 5000
Dia. of Cylinder (mm) 1000-8000 1000-5000 1000-4000
Rotating Angle of Engine Base ±180° ±180° ±180°
Lifting Speed (m/min) 0.9 1 1
Retraction Speed (m/min) 0.12-1.2 0.12-1.2 0.12-1.2
Trolley Moving Speed (m/min) 3 3 3
Centre Distance of Trolley Guide Rail (mm) 2308 1780 1780

Besides heavy duty welding manipulator, WUXI HONJ MATERIAL CO., LTD. also supplies CNC cutting machine, straightening machine, welding machine, H beam production line, welding turning roller, box beam production line, and so on. Our products (e.g. automatic welding manipulators) have been certified by CE. Most of them enjoy broad application in petrochemical, heavy machinery, ship, structural steel construction and pressure container industry. We will provide technical consultation and advice within the guarantee period of 12 months.
