H Beam Welding Machine

Introduction

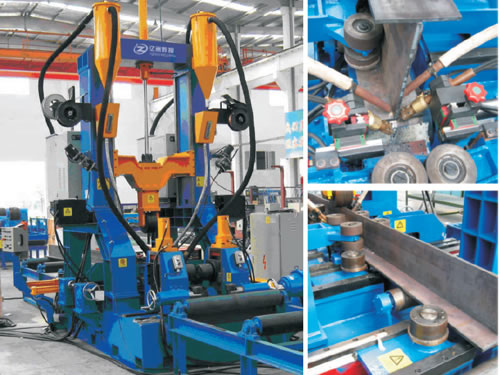

H beam assembly welding straightening machine is efficient equipment which allows H beam assemblage, submerged arc welding and flange plate deformation straightening to be conducted simultaneously. Beyond that, such H beam welding machine takes up less space and reduces the transference from one machine to another. Thus, working efficiency has improved largely. Thirdly, the machine is high technological, economical and practical. Nowadays, it has become the ideal equipment for making light steel.

Features
1. Flange plate and web plate of H beam assembly welding straightening machine employs unilateral manual positioning.
2. Hydraulic cylinder is used to drive flange and web plate, which provides strength and increase clamping flexibility.
3. The upper compressing device utilizes hydraulic cylinder to ensure a reliable combination between flange plate and web plate.
4. The adoption of single arc double wire welding head guarantees welding speed.

Single Arc Double Wire Submerged Arc Welding System
This system adopts Lincoln DC-1000 multifunctional welding power source. The single arc double wire welding methods can both ensure the quality of welding seam forming and reduce flange plate deformation.

Parameters

Model of H Beam Welding Machine	PHJ15	PHJ18	PHJ20
Thickness of Flange Plate (mm)	6-25
Width of Flange Plate (mm)	200-800
Thickness of Web Plate (mm)	5-20
Width of Web Plate (mm)	200-1500	200-1800	200-2000
Length of Work-piece (mm)	4000-15000

Package and Shipment
1. Foam paper, steel shelf and wooden case are used to package H beam welding machine.
2. Ocean shipping is only available for transporting H beam assembly welding straightening machine.

Payment
L/C and T/T are both accepted types of payment

With about five years of development, Wuxi HONJ Material (affiliated to Wuxi Yizhou Welding Co., Ltd.) has become a professional manufacturer of H beam assembly welding straightening machine. We also produce welding manipulator, cutting machine, turning roll, welding positioner, etc. The company provides clients with a wide range of services including technical training, installation, debugging, technical consulting, solutions, and so on. For detal information about H beam welding machine, please visit our website or call us directly.
