Welding Turntable

Welding Turntable

Introduction

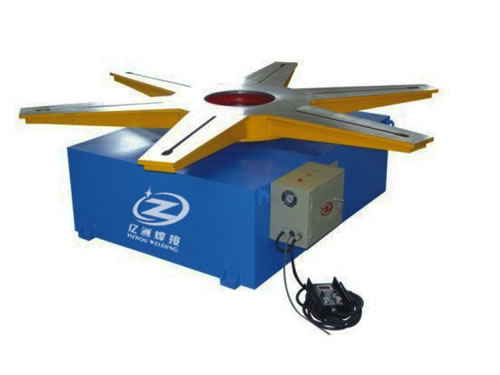

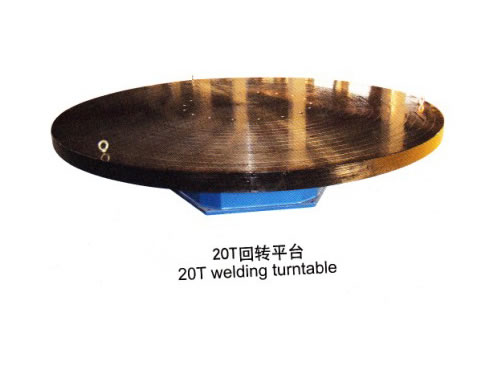

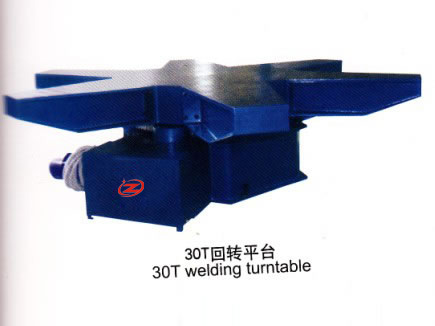

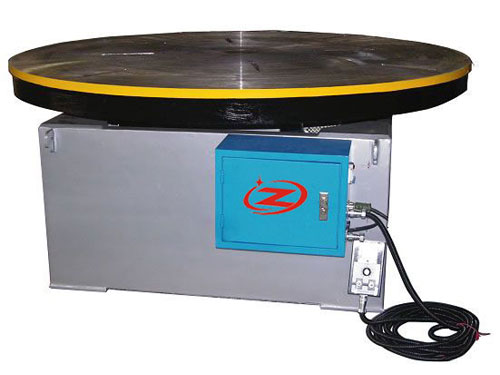

The horizontal welding turntable is mainly used for the welding, surfacing or cutting of pipes and flange plates. Such rotary welding positioner is also suitable for assembling, cutting, inspecting, sanding and painting work piece. It enables work-piece to rotate around vertical axis. The turntable can be used as a component and can enhance the original function when combined with other equipment. Our horizontal welding turntable has features of high precision and stable running. The worktable driver reducer has self-locking function. The frequency inverter has self-protection function against overload, over-current and over-voltage. Thus, maintenance free operation can be realized.

We are a professional horizontal welding turntable manufacturer and rotary welding positioner supplier in China. In addition, we also produce shot blasting machine, milling equipment, automatic welding manipulator, welding turning roller, and so on. All our products have entered international market, like the USA, Russia, Italy, Australia, Japan, India, Brazil, Malaysia, UAE, etc. We are looking forward to your inquiry.

Parameters

Model HZ-5 HZ-10 HZ-20 HZ-50 HZ-100 HZ-150 HZ-250
Carrying Capacity (t)   5 10 20 30 100 150 250
Worktable Diameter (mm)   1500 1800 2000 2200 2500 2800 2800
Worktable Height (mm) 650 650 740 750 1150 1300 1400
Rotating Speed (rpm) 0.05-1 0.05-1 0.025-0.5 0.025-0.5 0.015-0.3 0.015-0.3 0.01-0.2
Speed Control Mode Frequency Conversion Stepless Speed Control
Motor Power (Kw) 1.1 1.1 1.5 2.2 4 5 7.5
Related Products

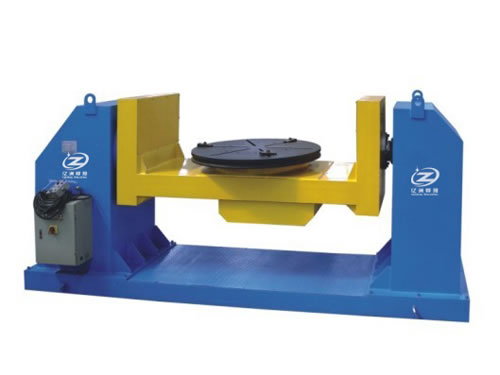

  • Custom Welding PositionerThe welder positioner includes the tilting type, lifting type, head and tail stock positioner, welding turntable and double rotation type. The work-piece is made to be in the optimum position for welding or assembling by way of the lifting and rotation of worktable. The positioner, together with welding manipulator and robot, can form an automatic welding machine. According to different types of work-pieces ...
